# Delta Mining Company Network

Projects 5 / 5
9 min read
Network Implementation Projects GNS3
Table of Contents

Project Overview

This project implements a virtual enterprise network for Delta Mining Company (DMC), modelled in GNS3. Two operational sites — Perth CBD and Gosnells Quarry — are connected over a site-to-site IPSec VPN between FortiGate firewalls, with independent Internet breakout at each location.

Each site uses a Cisco core switch for VLAN trunking and a FortiGate 6.4.12 as the security gateway. End hosts are segmented into purpose-specific VLANs covering workstations, servers, DMZ services, application systems, CCTV monitoring, and OT devices. Firewall zones enforce controlled traffic between segments before it reaches the WAN or the remote site.

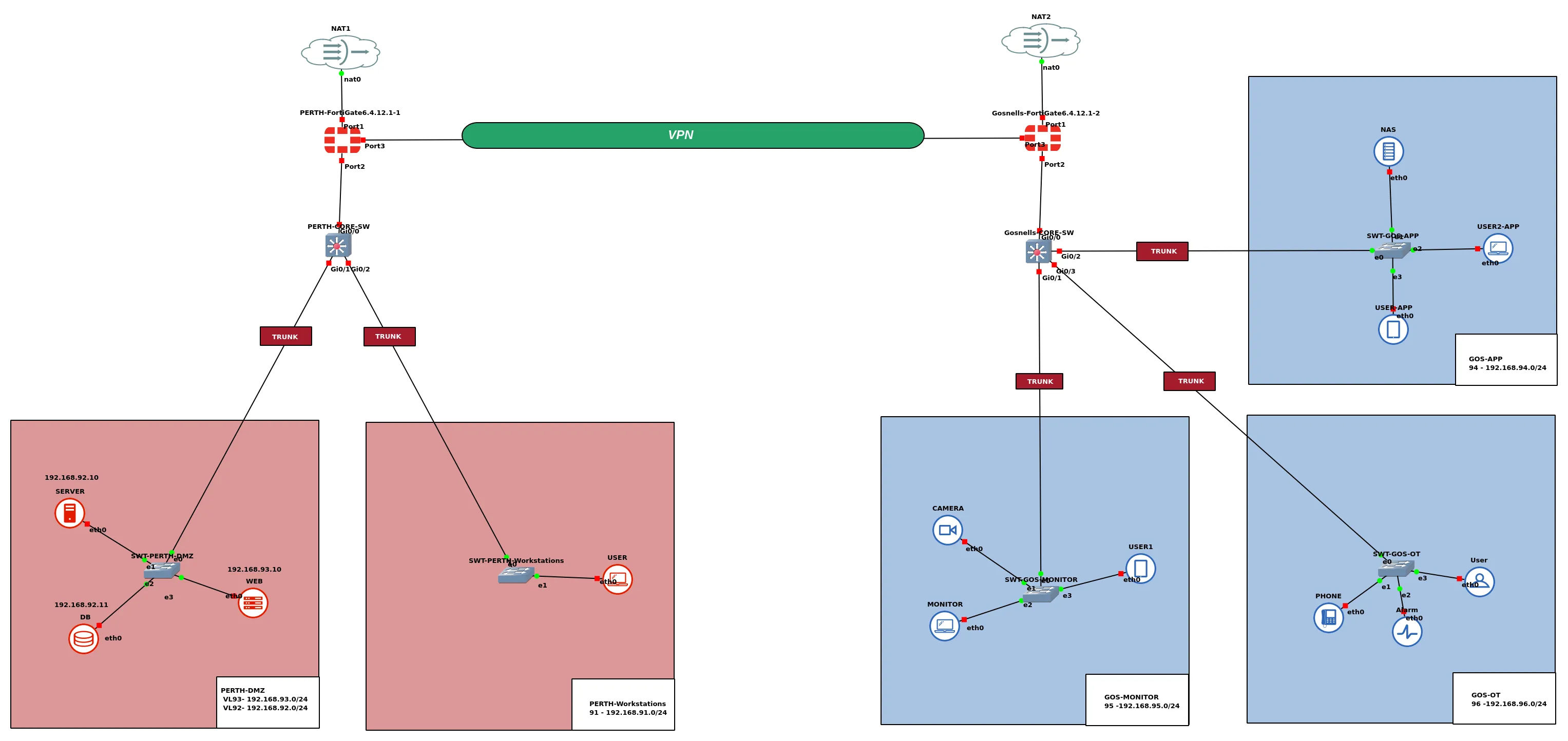

Network Architecture

The design follows a dual-site layout aligned with DMC’s Perth CBD headquarters and Gosnells Quarry operations. Perth hosts internal servers, a database, and a DMZ web tier; Gosnells hosts application workloads, CCTV monitoring, and OT systems including phones and alarm panels. Cross-site communication is limited to matched VLAN pairs over the VPN tunnel.

Perth CBD

DeviceRole
PERTH-FortiGate6.4.12.1-1Perimeter firewall, VLAN routing, NAT, IPSec VPN
PERTH-CORE-SWLayer-2 trunking for VLANs 91–93
SWT-PERTH-WorkstationsAccess switch for end-user workstations
SWT-PERTH-DMZAccess switch for servers and web services

Gosnells Quarry

DeviceRole
Gosnells-FortiGate6.4.12.1-2Perimeter firewall, VLAN routing, NAT, IPSec VPN
Gosnells-CORE-SWLayer-2 trunking for VLANs 94–96
SWT-GOS-APPApplication and NAS hosts
SWT-GOS-MONITORCameras and monitoring workstations
SWT-GOS-OTOT devices — phones, alarms, and control endpoints
LinkPerthGosnells
Internet (NAT)port1 → 192.168.122.223port1 → 192.168.122.152
Site-to-site VPNport3 → 200.10.10.2port3 → 200.10.10.3

IP Addressing and VLANs

VLANNameSubnetSitePurpose
91PERTH-Workstations192.168.91.0/24PerthEnd-user workstations
92PERTH-SERVER192.168.92.0/24PerthInternal servers and database
93PERTH-DMZ192.168.93.0/24PerthPublic-facing web services
94GOS-APP192.168.94.0/24GosnellsApplication servers and NAS
95GOS-MONITOR192.168.95.0/24GosnellsCCTV and monitoring systems
96GOS-OT192.168.96.0/24GosnellsOperational technology devices

VPN Subnet Pairing

Traffic between sites is routed through IPSec phase-2 selectors that map each Perth VLAN to its Gosnells counterpart:

Perth subnetGosnells subnetTraffic type
192.168.91.0/24 (Workstations)192.168.94.0/24 (APP)User ↔ application access
192.168.92.0/24 (SERVER)192.168.95.0/24 (MONITOR)Server ↔ monitoring
192.168.93.0/24 (DMZ)192.168.96.0/24 (OT)Web/DMZ ↔ OT systems

Asset Register — Perth CBD

VLANNetworkDevice / RoleIP Address
91192.168.91.0/24Workstation 1192.168.91.10
92192.168.92.0/24Server192.168.92.10
92192.168.92.0/24Database192.168.92.11
93192.168.93.0/24Web Server192.168.93.10
—200.10.10.0/24WAN (FortiGate port3)200.10.10.2

Default gateways for VLANs 91–93 are the FortiGate sub-interfaces at .1 in each subnet (e.g. 192.168.91.1).

Asset Register — Gosnells Quarry

VLANNetworkDevice / RoleIP Address
94192.168.94.0/24USER-APP192.168.94.10
94192.168.94.0/24NAS / App Host192.168.94.11
94192.168.94.0/24USER2-APP192.168.94.12
95192.168.95.0/24User192.168.95.10
95192.168.95.0/24Camera192.168.95.11
95192.168.95.0/24Monitor192.168.95.12
96192.168.96.0/24User192.168.96.10
96192.168.96.0/24Alarm / OT Device192.168.96.11
96192.168.96.0/24Phone192.168.96.12
—200.10.10.0/24WAN (FortiGate port3)200.10.10.3

Default gateways for VLANs 94–96 are the FortiGate sub-interfaces at .1 in each subnet (e.g. 192.168.94.1).

Perth Site Configuration

Core Switch

The Perth core switch creates the three site VLANs and trunking toward the FortiGate and access switches.

PERTH-CORE-SW
!192.168.91.0/24 - vlan91 - PERTH-Workstations
!192.168.92.0/24 - vlan92 - PERTH-SERVER
!192.168.93.0/24 - vlan93 - PERTH-DMZ
!show vlan brief
!show vlan id <vlan-id>
!show interfaces trunk


enable


conf terminal


hostname PERTH-CORE-SW


vlan 91
    name PERTH-Workstations
    exit


vlan 92
    name PERTH-SERVER
    exit


vlan 93
    name PERTH-DMZ
    exit


 interf range g0/0-2
  switchport trunk encapsulation dot1q
  switchport mode trunk
  switchport trunk allow vlan 91,92,93
  exit


write

FortiGate Firewall

The Perth FortiGate terminates VLAN sub-interfaces on port2, groups them into the PERTH-ZONE security zone, and applies firewall policies for intra-site and Internet-bound traffic. port3 carries the IPSec tunnel to Gosnells.

PERTH-FortiGate6.4.12.1-1
!192.168.91.0/24 - vlan91 - PERTH-Workstations
!192.168.92.0/24 - vlan92 - PERTH-SERVER
!192.168.93.0/24 - vlan93 - PERTH-DMZ
!get system interface
!port1 ip:192.168.122.223


config system interface
    edit port1
    set allowaccess http https ping snmp ssh telnet
end


config router static
    edit 1
    set gateway 192.168.122.1
    set dst 0.0.0.0 0.0.0.0
    set device port1
    next
end


config system interface
    edit "vlan91"
        set vdom "root"
        set interface "port2"
        set alias "PERTH-Workstations"
        set vlanid 91
        set ip 192.168.91.1 255.255.255.0
        set allowaccess http https ping snmp ssh telnet
    next
end


config system interface
    edit "vlan92"
        set vdom "root"
        set interface "port2"
        set alias "PERTH-SERVER"
        set vlanid 92
        set ip 192.168.92.1 255.255.255.0
        set allowaccess http https ping snmp ssh telnet
    next
end


config system interface
    edit "vlan93"
        set vdom "root"
        set interface "port2"
        set alias "PERTH-DMZ"
        set vlanid 93
        set ip 192.168.93.1 255.255.255.0
        set allowaccess http https ping snmp ssh telnet
    next
end


config system zone
    edit "PERTH-ZONE"
        set intrazone deny
        set interface "vlan91" "vlan92" "vlan93"
        set description "Zone for Perth site VLANs: Workstations, Servers, and DMZ"
    next
end


config firewall policy
    edit 0
        set name "PERTH-Workstations-to-Servers"
        set srcintf "PERTH-ZONE"
        set dstintf "PERTH-ZONE"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set nat enable
    next
end


config firewall policy
    edit 1
        set name "PERTH-to-Internet"
        set srcintf "PERTH-ZONE"
        set dstintf "port1"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set nat enable
        set logtraffic all
    next
end


config system interface
    edit "port3"
        set vdom "root"
        set alias "WAN_GOS"
        set role wan
        set mode static
        set ip 200.10.10.2 255.255.255.0
        set allowaccess ping https ssh
    next
end


config vpn ipsec phase1-interface
    edit "VPN_PTH_GOS"
        set interface "port3"
        set ike-version 2
        set peertype any
        set net-device enable
        set proposal des-sha1
        set dhgrp 14
        set remote-gw 200.10.10.3
        set psksecret "FortiGateVPN123"
    next
end


config vpn ipsec phase2-interface
    edit "P2_91_94"
        set phase1name "VPN_PTH_GOS"
        set proposal des-sha1
        set dhgrp 14
        set src-subnet 192.168.91.0 255.255.255.0
        set dst-subnet 192.168.94.0 255.255.255.0
    next


    edit "P2_92_95"
        set phase1name "VPN_PTH_GOS"
        set proposal des-sha1
        set dhgrp 14
        set src-subnet 192.168.92.0 255.255.255.0
        set dst-subnet 192.168.95.0 255.255.255.0
    next


    edit "P2_93_96"
        set phase1name "VPN_PTH_GOS"
        set proposal des-sha1
        set dhgrp 14
        set src-subnet 192.168.93.0 255.255.255.0
        set dst-subnet 192.168.96.0 255.255.255.0
    next
end


config router static
    edit 0
        set dst 192.168.94.0 255.255.255.0
        set device "VPN_PTH_GOS"
    next
    edit 0
        set dst 192.168.95.0 255.255.255.0
        set device "VPN_PTH_GOS"
    next
    edit 0
        set dst 192.168.96.0 255.255.255.0
        set device "VPN_PTH_GOS"
    next
end

End-Host Network Settings

Each Perth VLAN host uses its FortiGate sub-interface as the default gateway.

PERTH IPS — Workstations (VLAN 91)
iface eth0 inet static
    address 192.168.91.10
    netmask 255.255.255.0
    gateway 192.168.91.1
    up echo nameserver 8.8.8.8 > /etc/resolv.conf
PERTH IPS — Server (VLAN 92)
iface eth0 inet static
    address 192.168.92.10
    netmask 255.255.255.0
    gateway 192.168.92.1
    up echo nameserver 8.8.8.8 > /etc/resolv.conf
PERTH IPS — DMZ Web (VLAN 93)
iface eth0 inet static
    address 192.168.93.10
    netmask 255.255.255.0
    gateway 192.168.93.1
    up echo nameserver 8.8.8.8 > /etc/resolv.conf

Gosnells Site Configuration

Core Switch

Gosnells-CORE-SW
!192.168.94.0/24 - vlan94 - GOS-APP
!192.168.95.0/24 - vlan95 - GOS-MONITOR
!192.168.96.0/24 - vlan96 - GOS-OT
!show vlan brief
!show vlan id <vlan-id>
!show interfaces trunk


enable


conf terminal


hostname Gosnells-CORE-SW


vlan 94
    name GOS-APP
    exit


vlan 95
    name GOS-MONITOR
    exit


vlan 96
    name GOS-OT
    exit


 interf range g0/0-3
  switchport trunk encapsulation dot1q
  switchport mode trunk
  switchport trunk allow vlan 94,95,96
  exit


write

FortiGate Firewall

The Gosnells FortiGate mirrors the Perth design with its own GOS-ZONE, Internet policy, and bidirectional VPN firewall rules.

Gosnells-FortiGate6.4.12.1-2
!192.168.94.0/24 - vlan94 - GOS-APP
!192.168.95.0/24 - vlan95 - GOS-MONITOR
!192.168.96.0/24 - vlan96 - GOS-OT
!get system interface
!port1 ip:192.168.122.152


config system interface
    edit port1
    set allowaccess http https ping snmp ssh telnet
end


config router static
    edit 1
    set gateway 192.168.122.1
    set dst 0.0.0.0 0.0.0.0
    set device port1
    next
end


config system interface
    edit "vlan94"
        set vdom "root"
        set interface "port2"
        set alias "GOS-APP"
        set vlanid 94
        set ip 192.168.94.1 255.255.255.0
        set allowaccess http https ping snmp ssh telnet
    next
end


config system interface
    edit "vlan95"
        set vdom "root"
        set interface "port2"
        set alias "GOS-MONITOR"
        set vlanid 95
        set ip 192.168.95.1 255.255.255.0
        set allowaccess http https ping snmp ssh telnet
    next
end


config system interface
    edit "vlan96"
        set vdom "root"
        set interface "port2"
        set alias "GOS-OT"
        set vlanid 96
        set ip 192.168.96.1 255.255.255.0
        set allowaccess http https ping snmp ssh telnet
    next
end


config system zone
    edit "GOS-ZONE"
        set intrazone deny
        set interface "vlan94" "vlan95" "vlan96"
        set description "Zone for Gosnells site VLANs: APP, MONITOR, and OT"
    next
end


config firewall policy
    edit 0
        set name "GOS-APP-OT-MONITOR"
        set srcintf "GOS-ZONE"
        set dstintf "GOS-ZONE"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set nat enable
    next
end


config firewall policy
    edit 1
        set name "GOS-ZONE-Internet"
        set srcintf "GOS-ZONE"
        set dstintf "port1"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set nat enable
        set logtraffic all
    next
end


config system interface
    edit "port3"
        set vdom "root"
        set alias "WAN_PERTH"
        set role wan
        set mode static
        set ip 200.10.10.3 255.255.255.0
        set allowaccess ping https ssh
    next
end


config vpn ipsec phase1-interface
    edit "VPN_GOS_PTH"
        set interface "port3"
        set ike-version 2
        set peertype any
        set net-device enable
        set proposal des-sha1
        set dhgrp 14
        set remote-gw 200.10.10.2
        set psksecret "FortiGateVPN123"
    next
end


config vpn ipsec phase2-interface
    edit "P2_94_91"
        set phase1name "VPN_GOS_PTH"
        set proposal des-sha1
        set dhgrp 14
        set src-subnet 192.168.94.0 255.255.255.0
        set dst-subnet 192.168.91.0 255.255.255.0
    next


    edit "P2_95_92"
        set phase1name "VPN_GOS_PTH"
        set proposal des-sha1
        set dhgrp 14
        set src-subnet 192.168.95.0 255.255.255.0
        set dst-subnet 192.168.92.0 255.255.255.0
    next


    edit "P2_96_93"
        set phase1name "VPN_GOS_PTH"
        set proposal des-sha1
        set dhgrp 14
        set src-subnet 192.168.96.0 255.255.255.0
        set dst-subnet 192.168.93.0 255.255.255.0
    next
end


config router static
    edit 0
        set dst 192.168.91.0 255.255.255.0
        set device "VPN_GOS_PTH"
    next
    edit 0
        set dst 192.168.92.0 255.255.255.0
        set device "VPN_GOS_PTH"
    next
    edit 0
        set dst 192.168.93.0 255.255.255.0
        set device "VPN_GOS_PTH"
    next
end


config firewall policy
    edit 0
        set name "GOS_to_PERTH_VPN"
        set srcintf "GOS-ZONE"
        set dstintf "VPN_GOS_PTH"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set nat disable
        set logtraffic all
    next


    edit 0
        set name "PERTH_to_GOS_VPN"
        set srcintf "VPN_GOS_PTH"
        set dstintf "GOS-ZONE"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set nat disable
        set logtraffic all
    next
end

End-Host Network Settings

GOSNELLS IPS — APP (VLAN 94)
iface eth0 inet static
    address 192.168.94.10
    netmask 255.255.255.0
    gateway 192.168.94.1
    up echo nameserver 8.8.8.8 > /etc/resolv.conf
GOSNELLS IPS — MONITOR (VLAN 95)
iface eth0 inet static
    address 192.168.95.10
    netmask 255.255.255.0
    gateway 192.168.95.1
    up echo nameserver 8.8.8.8 > /etc/resolv.conf
GOSNELLS IPS — OT (VLAN 96)
iface eth0 inet static
    address 192.168.96.10
    netmask 255.255.255.0
    gateway 192.168.96.1
    up echo nameserver 8.8.8.8 > /etc/resolv.conf

Site-to-Site VPN

Both FortiGates establish an IKEv2 IPSec tunnel over the dedicated WAN link (200.10.10.0/24). Phase-1 uses DH group 14 with DES-SHA1 proposals; phase-2 selectors restrict traffic to the three paired subnet pairs listed above.

Static routes on each firewall send remote-site traffic into the VPN tunnel interface. On the Gosnells side, explicit firewall policies allow bidirectional VPN traffic with NAT disabled, preserving end-to-end addressing across sites.

To verify the tunnel from either FortiGate CLI:

Terminal window
get vpn ipsec tunnel summary
diagnose vpn tunnel list

Security Features

  • VLAN segmentation — Workstations, servers, DMZ, application, monitoring, and OT traffic are isolated at Layer 2.
  • FortiGate security zones — intrazone deny on both sites blocks implicit inter-VLAN traffic; explicit policies must allow it.
  • NAT — Applied on Internet-bound policies; disabled on VPN policies to keep private addressing intact.
  • Traffic logging — Internet and VPN policies on the Gosnells FortiGate log all sessions for audit and troubleshooting.
  • Dedicated WAN link — Site-to-site traffic uses a separate interface from the Internet breakout on each firewall.
My avatar

Appreciate you reading. If you want more hacking write-ups, network labs, and code deep-dives, check out my other posts or connect via the social links in the footer.

Projects Series
